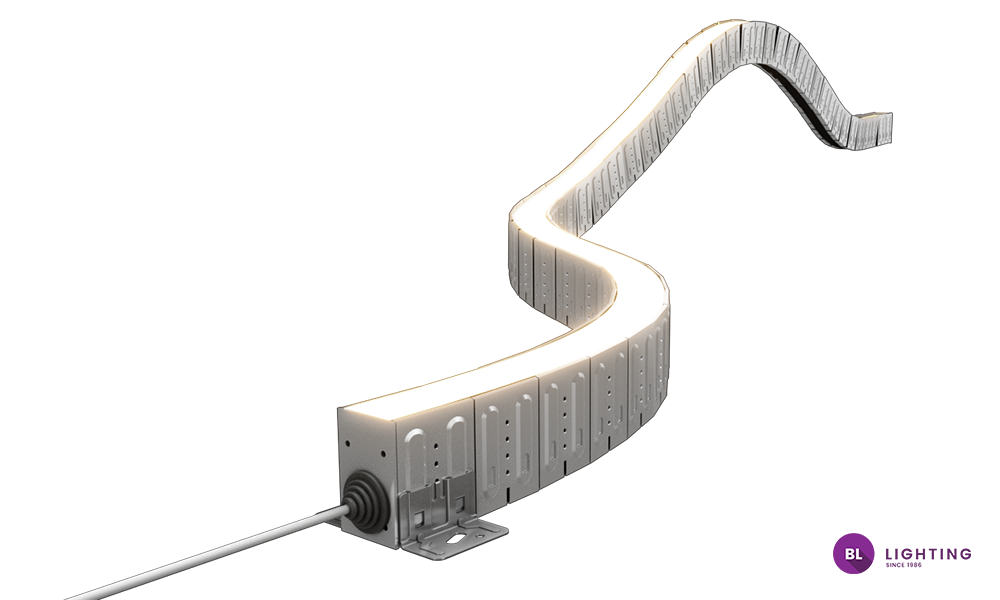

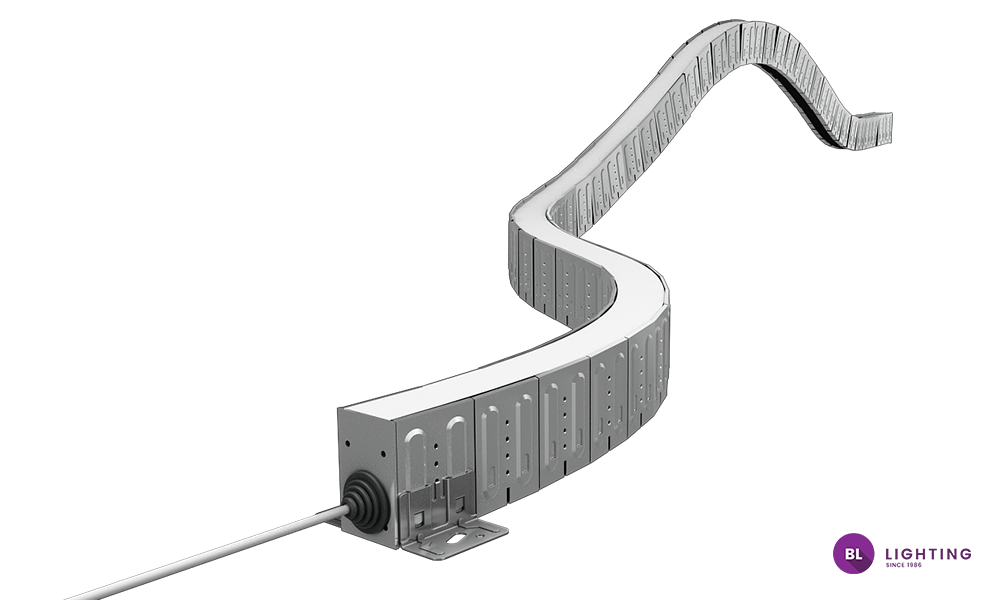

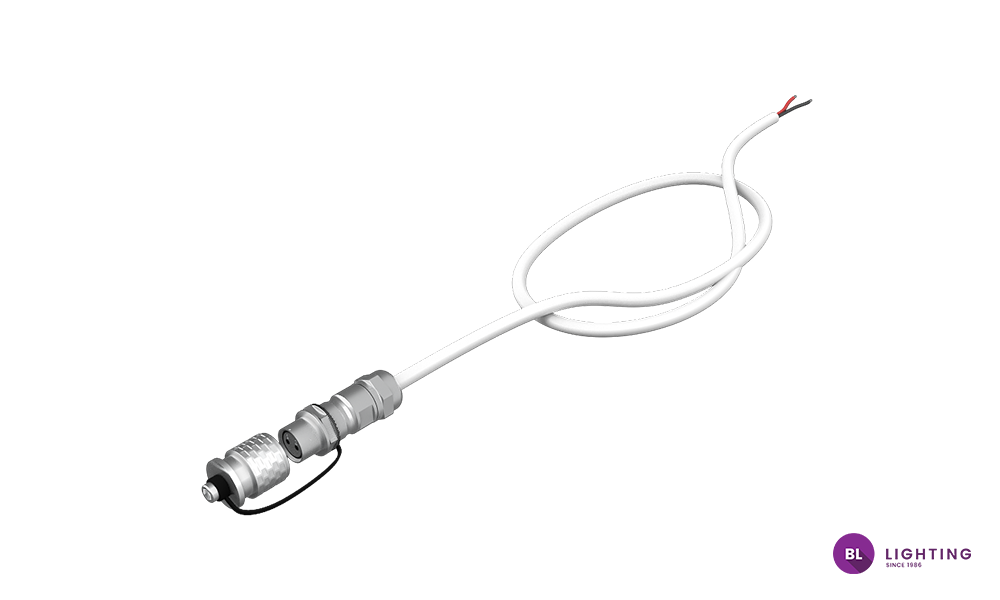

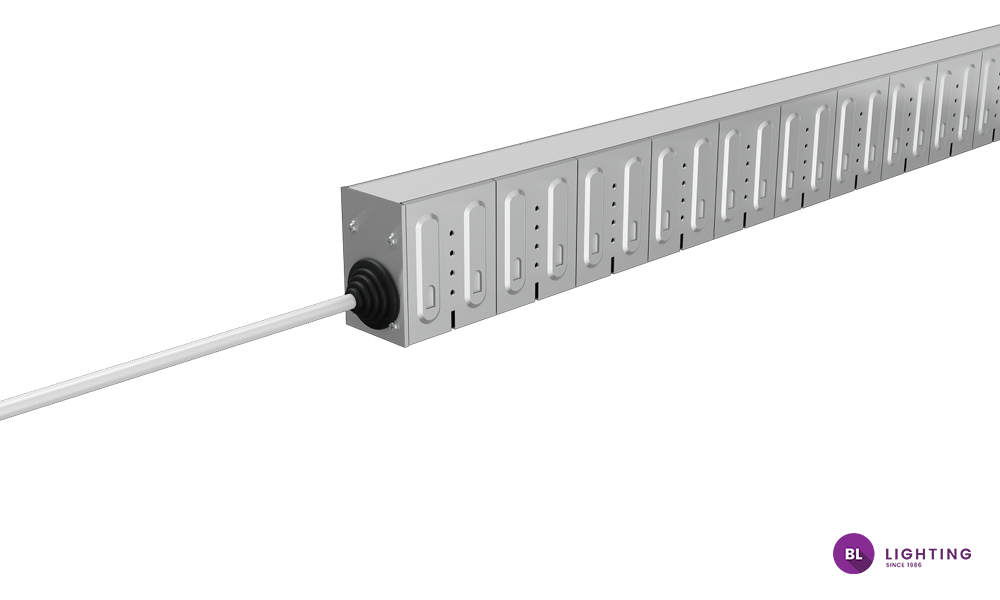

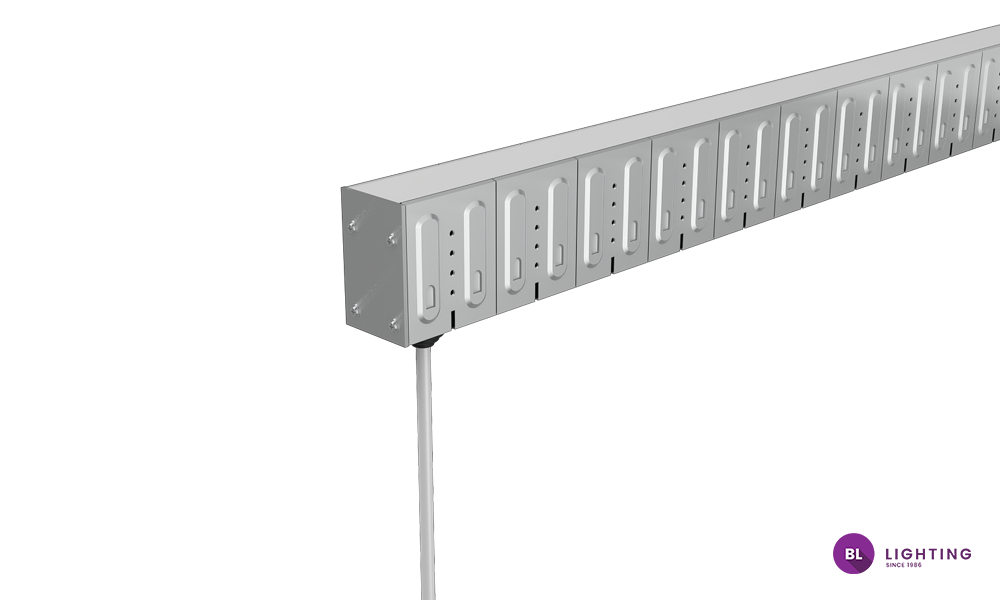

LNR9060S direct view, glare-free in-grade recessed drive over linear lights are engineered for flush mount installations and ideal for wayfinding, delineation, accent and safety lighting in floor, ground and wall installations. Flexible and solidly constructed with up to 5512lbf weight bearing capacity, IP68 rating, stainless steel frame and aluminum channel, weatherproof quick connectors for ease of installation. The channel is an excellent heat sink, and engineered with a drain channel, preventing permanent submersion of the IP68 rated LED housed within, ensuring longevity. The flush recessed and treadable non-slip silicone lens top delivers uniformly diffused, glare-free illumination with a 115° beam angle. Achieve seamless, continuous run lengths. Perfect for projects requiring recessed, robust, lines of linear lighting.
-
Features & Benefits
Bendable Recesses In Ground Linear
Drive-Over Load Rating
5512lbf Weight Bearing
Flush Recessed Installations
Custom Run Lengths
Seamless, Continuous Light
Wide 115° Beam, Up to 235lm/FT (770lm/M)
Silicone Diffuser Lens Optimizes Uniform and Glare Free Light Delivery
Safe, Anti-Slip Surface
Smooth Transition Between Surfaces
Operating Temperature -40°F to 131°F (-40°-55°C)
IP68 Rated LED for Wet or Dry Locations
IK10 Impact Rating
50,000 Hour Life LED
Easy Re-lamping Without Removing Luminaire

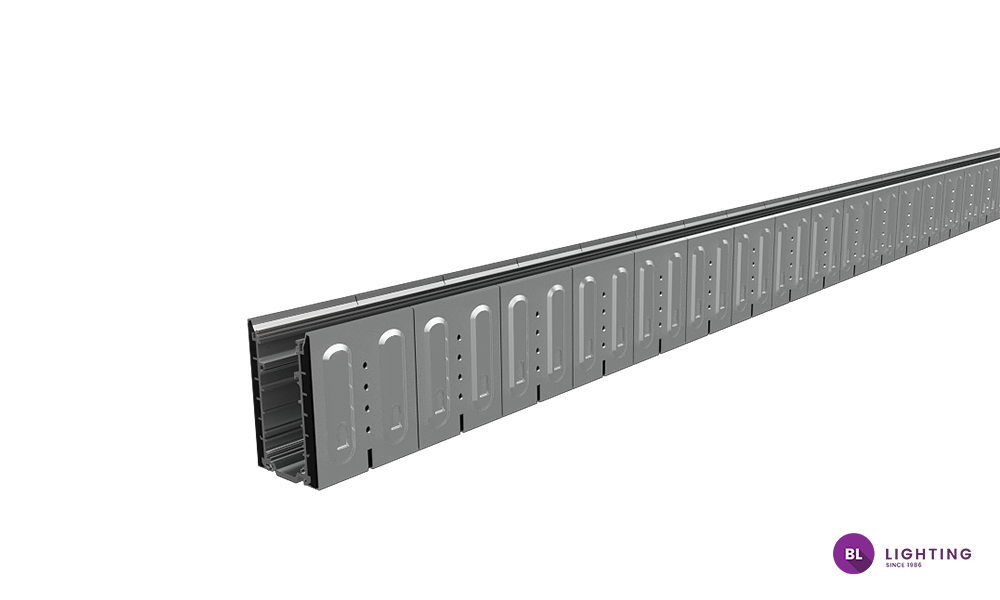

316 Stainless Steel Frame, 6063 Aluminum Channel
Suitable for In Ground, In Floor and Wall Installations
-
Certifications
-
Color/CCT
-
2100K
-
2700K
-
3000K
-
4000K
-
5100K
-
Red
-
Green
-
Blue
-
-
Controls
0-10V MLV ELV TRIAC
DMX
Bluetooth
0-10V
DMX
Bluetooth
BL SYSTEMBUILDER - LIGHTING, POWER & CONTROL CONFIGURATOR TOOL
Your Product Code
-
Product Code
-
Series
-
Weight Bearing
-
Effect
-
Color
-
Input Voltage
-
Ingress Protection
Select options from the menu to generate a BL Product Code and create your a custom Data Sheet.
Download this document to supplement your design, specification, or to initiate a Bill of Materials with a BL Lighting rep. These are useful details that help us define your project.
1 Layout, Quantity, and other project specific requirements are unknown.
2 Custom Data Sheet is for illustrative purposes and is not an official specification sheet.
Please consult BL Lighting for further details regarding the information and specifics provided in this document. A detailed description of custom system specification to follow official RFQ. Please provide this custom document to the BL Lighting Quotations Department or appointed representative when requesting a Bill of Materials.
