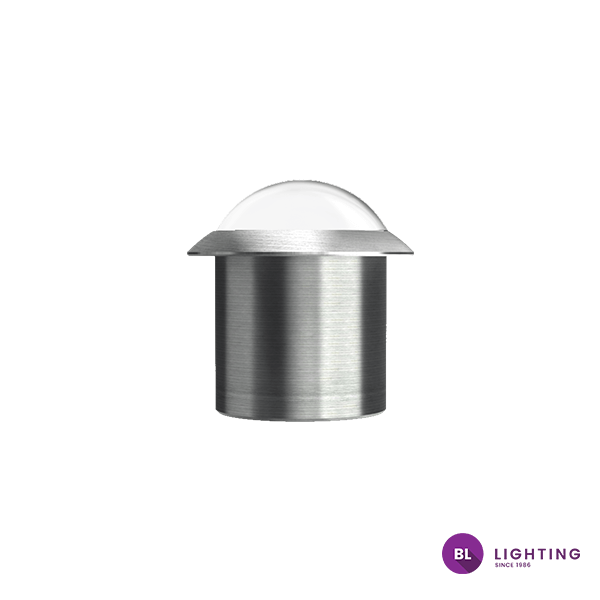

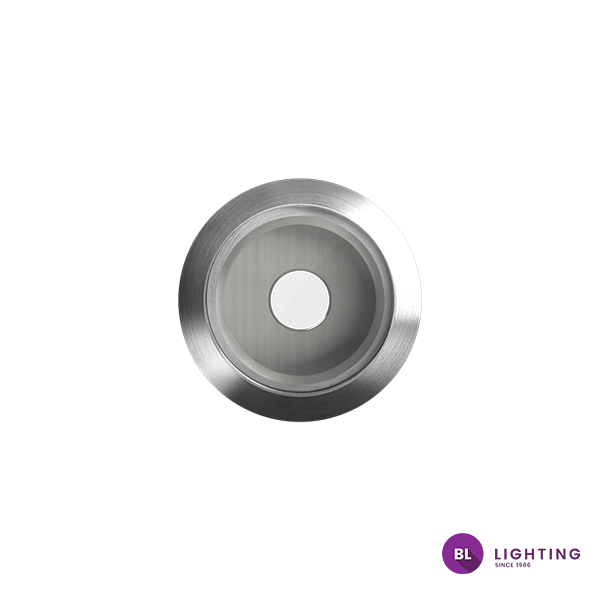

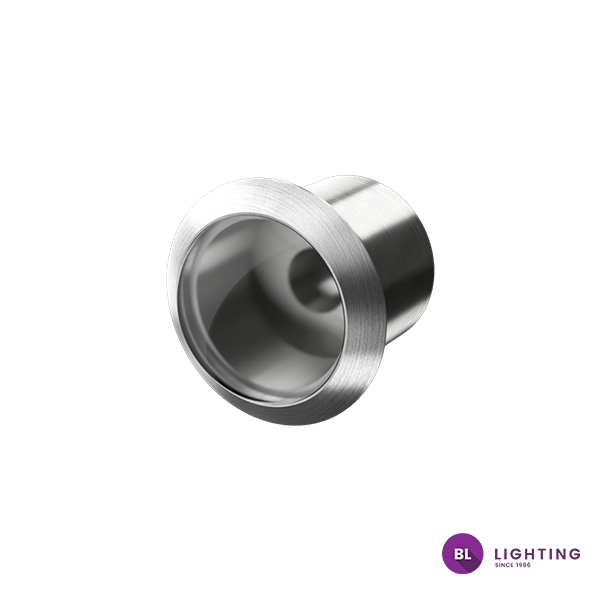

P11 is a miniature fiber optic end fixture designed for seamless installation in architectural and landscape applications. Constructed from 316 stainless steel with a domed clear or frosted 1.02″ tempered glass lens, it offers smooth and precise light transmission. Its beam angle, adjustable between 20° and 40°, depends on fiber depth, making it ideal for controlled accent lighting. Designed for recessed mounting, P11 supports fiber diameters from 0.08″ to 0.31″ and weighs just 0.18 lbs. Rated IP65 and operating from 14°F to 113°F, it delivers reliable performance in both indoor and outdoor environments.
-
Features & Benefits
IP65 Rated for Wet Locations
316 Stainless Steel, Tempered Glass
Beam Angles 20° - 40° (Beam angle determined by fiber depth)

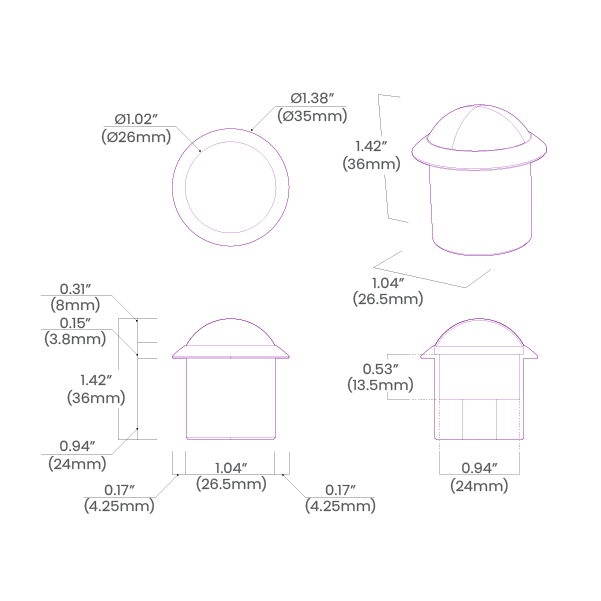

Ø1.02” (Ø26mm) SS316 Trim, Domed Lens
Operating Temperature 14°F to 113°F (-10°C to 45°C) -
Certifications
-
DOWNLOADS
-
Diameters Available
Min/Max Fiber size 0.08” - 0.31” (2mm - 8mm)
