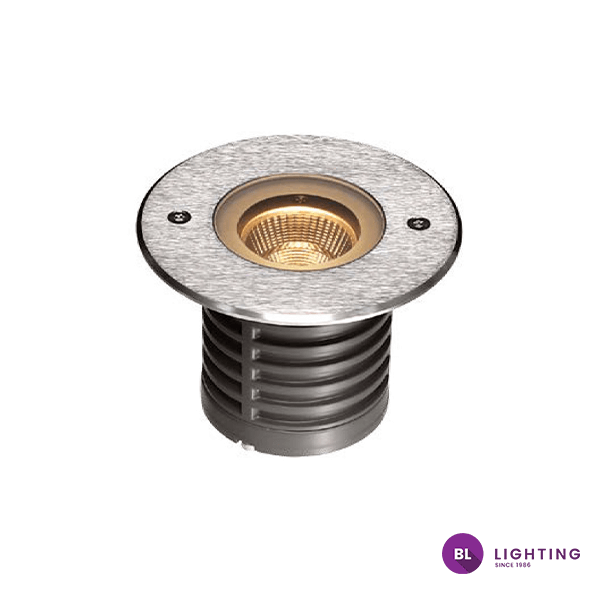

BL Inground DR116 ground recessed uplights are built to blend seamlessly into the landscape, and ideal for vertical highlighting of features such as columns, porticoes, garden walls, and tree silhouettes. Available with your choice of 18°, 25° or 40° beam angles, in 3000K or 6000K options. The unit is durably constructed with a die-cast aluminum body, a 316L stainless steel trim and a tempered glass lens while the mounting boot allows uniform and fast installations. Low profile and efficient, these well lights are rated IP67, and are treadable, with up to 5500lb weight bearing capacity, perfect for installation in pavers, on decks, patios and along paths and walkways.
-
Features & Benefits
Up to 5500LB (2500kg) Weight Bearing
IP67 Rated for Wet Locations
Durable Aluminum, Stainless Steel 316L and Tempered Glass Construction
Class 2, ETL Listed Low-Voltage Lighting System
50,000 Hours Average Lifespan
Beam Angles: 18°, 25° and 40°
Ø4.56" (116mm) Trim -
Certifications
-
Color Options
-
3000K
-
6000K
-
-
Controls
Triac Dali 1-10V
Triac
BL SYSTEMBUILDER - LIGHTING, POWER & CONTROL CONFIGURATOR TOOL
Your Product Code
-
Product Code
-
Series
-
CCT
-
Beam Angle
-
Louver (Optional)
-
Input Voltage
-
Ingress Protection
Select options from the menu to generate a BL Product Code and create your a custom Data Sheet.
Download this document to supplement your design, specification, or to initiate a Bill of Materials with a BL Lighting rep. These are useful details that help us define your project.
1 Layout, Quantity, and other project specific requirements are unknown.
2 Custom Data Sheet is for illustrative purposes and is not an official specification sheet.
Please consult BL Lighting for further details regarding the information and specifics provided in this document. A detailed description of custom system specification to follow official RFQ. Please provide this custom document to the BL Lighting Quotations Department or appointed representative when requesting a Bill of Materials.
