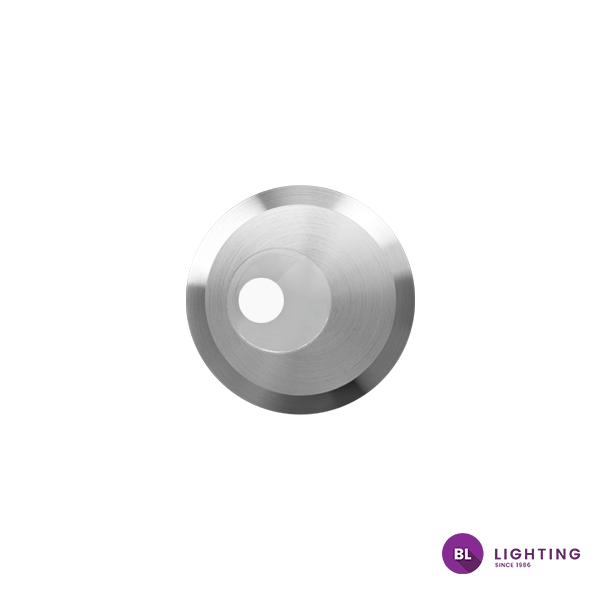

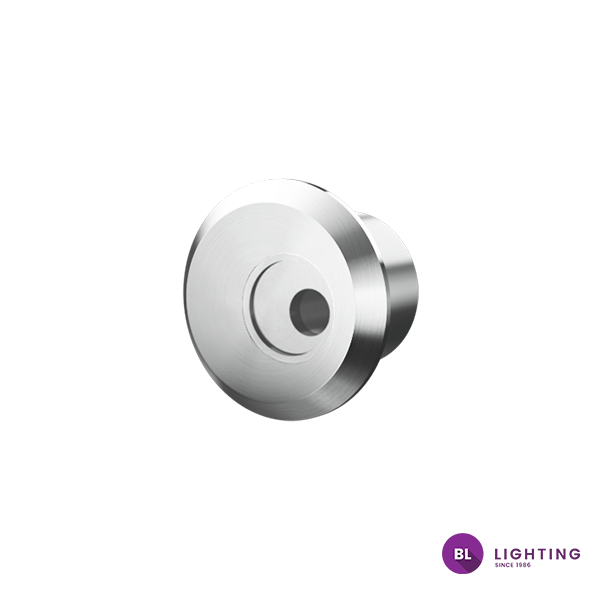

P31 is a compact, recessed fiber optic end fixture designed for precise, low-profile lighting in architectural and landscape settings. Constructed from 316 stainless steel with a 0.55″ flat clear tempered glass lens, it delivers a 54° beam for focused illumination. Supporting fiber sizes from 0.08″ to 0.20″, P31 is ideal for smaller-scale applications requiring clean integration. With an IP65 rating and an operating temperature range of 14°F to 113°F, it delivers reliable, durable performance in both indoor and outdoor environments.
-
Features & Benefits
IP65 Rated for Wet Locations
316 Stainless Steel, Tempered Glass
Beam Angles 54°
Ø0.55” (Ø13.85mm) SS316 Trim
Operating Temperature 14°F to 113°F (-10°C to 45°C) -
Certifications
-
DOWNLOADS
-
Diameters Available
Min/Max Fiber size 0.08” - 0.31” (2mm - 8mm)
BL SYSTEMBUILDER - LIGHTING, POWER & CONTROL CONFIGURATOR TOOL
Your Product Code
-
Lighting
-
Series
-
Optics
Select options from the menu to generate a BL Product Code and create your a custom Data Sheet.
Download this document to supplement your design, specification, or to initiate a Bill of Materials with a BL Lighting rep. These are useful details that help us define your project.
1 Layout, Quantity, and other project specific requirements are unknown.
2 Custom Data Sheet is for illustrative purposes and is not an official specification sheet.
Please consult BL Lighting for further details regarding the information and specifics provided in this document. A detailed description of custom system specification to follow official RFQ. Please provide this custom document to the BL Lighting Quotations Department or appointed representative when requesting a Bill of Materials.
