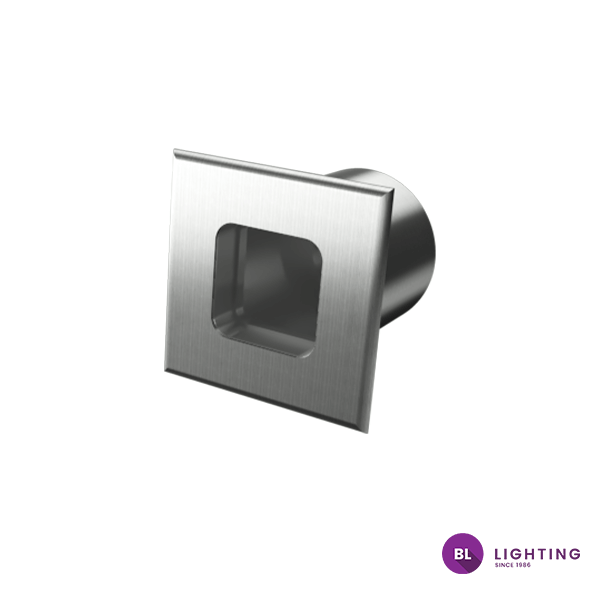

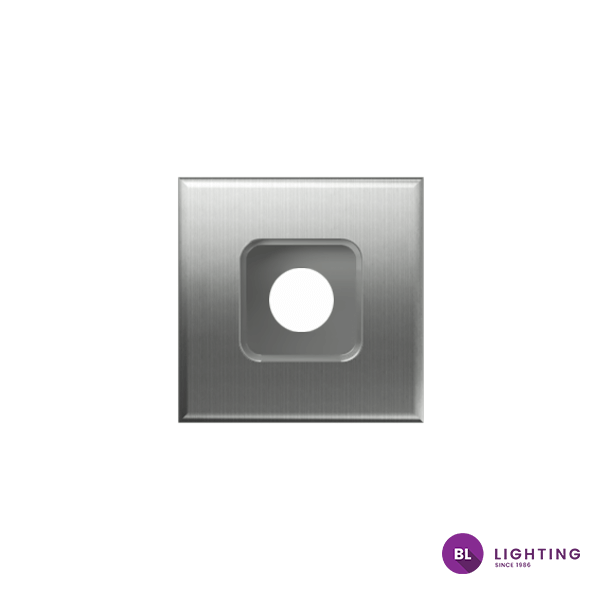

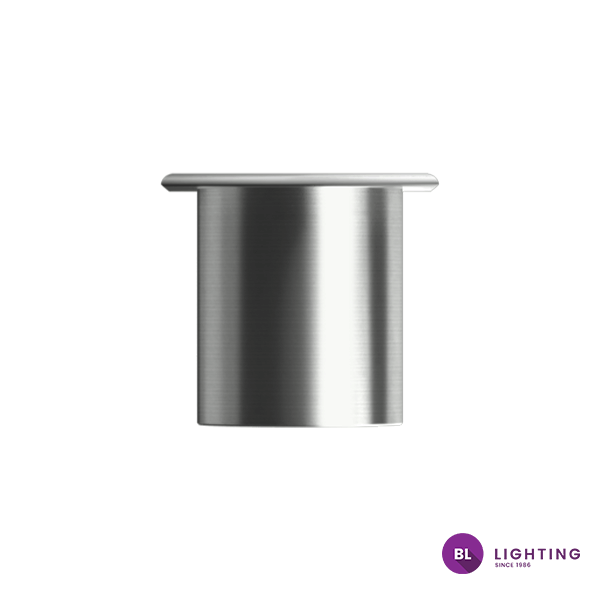

P24 is a walkover-rated fiber optic end fixture built for architectural and landscape lighting. Made from 316 stainless steel with a flat clear or frosted square 1.5″ tempered glass lens, it produces a 45° beam ideal for accenting broad surfaces. Designed for recessed installation, it accommodates fiber sizes from 0.08″ to 0.31″ and withstands loads up to 1,125 lbs. Weighing 0.68 lbs, P24 balances strength and precision. With an IP65 rating and an operating temperature range of 14°F to 113°F, it delivers reliable, durable performance in both indoor and outdoor environments.
-
Features & Benefits
1125LB (510kg) Weight Bearing
IP65 Rated for Wet Locations
316 Stainless Steel, Tempered Glass
Beam Angles 45°

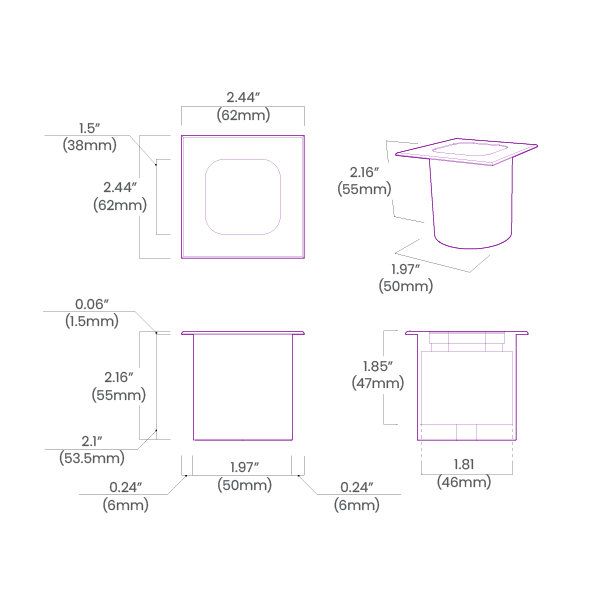

1.5” (38mm) SS316 Square Trim
Operating Temperature 14°F to 113°F (-10°C to 45°C) -
Certifications
-
DOWNLOADS
-
Diameters Available
Min/Max Fiber size 0.08” - 0.31” (2mm - 8mm)
BL SYSTEMBUILDER - LIGHTING, POWER & CONTROL CONFIGURATOR TOOL
Your Product Code
-
Lighting
-
Series
-
Optics
Select options from the menu to generate a BL Product Code and create your a custom Data Sheet.
Download this document to supplement your design, specification, or to initiate a Bill of Materials with a BL Lighting rep. These are useful details that help us define your project.
1 Layout, Quantity, and other project specific requirements are unknown.
2 Custom Data Sheet is for illustrative purposes and is not an official specification sheet.
Please consult BL Lighting for further details regarding the information and specifics provided in this document. A detailed description of custom system specification to follow official RFQ. Please provide this custom document to the BL Lighting Quotations Department or appointed representative when requesting a Bill of Materials.
