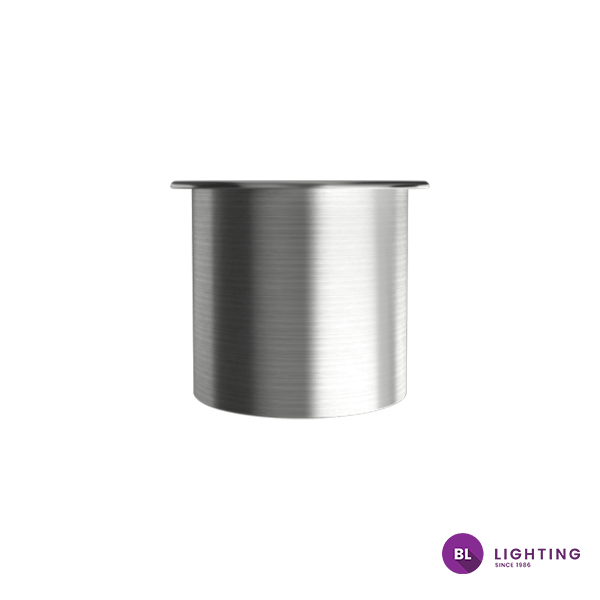

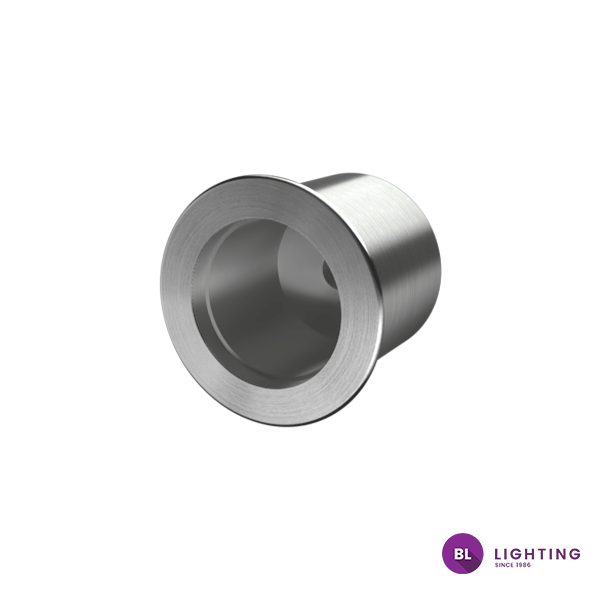

P20 is a walkover-rated fiber optic end fixture built for durability in demanding architectural and landscape settings. Featuring a 316 stainless steel body and a flat clear or frosted 1.5″ tempered glass lens, it delivers a wide 75° beam for broad light distribution. Designed for recessed mounting, P20 supports fiber sizes from 0.08″ to 0.31″ and handles loads up to 1,125 lbs. Weighing 1.1 lbs and rated IP65, it ensures reliable, weather-resistant performance from 14°F to 113°F.
-
Features & Benefits
1125LB (510kg) Weight Bearing
IP65 Rated for Wet Locations
316 Stainless Steel, Tempered Glass
Beam Angles 75°

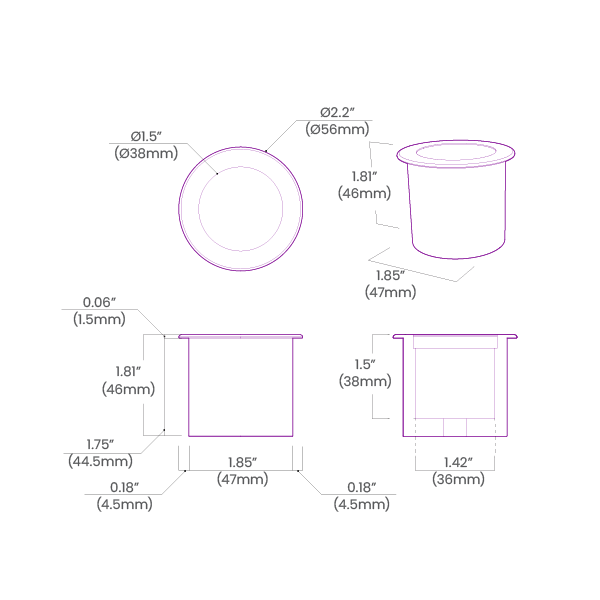

Ø1.5” (Ø38mm) SS316 Trim
Operating Temperature 14°F to 113°F (-10°C to 45°C) -
Certifications
-
DOWNLOADS
-
Diameters Available
Min/Max Fiber size 0.08” - 0.31” (2mm - 8mm)
