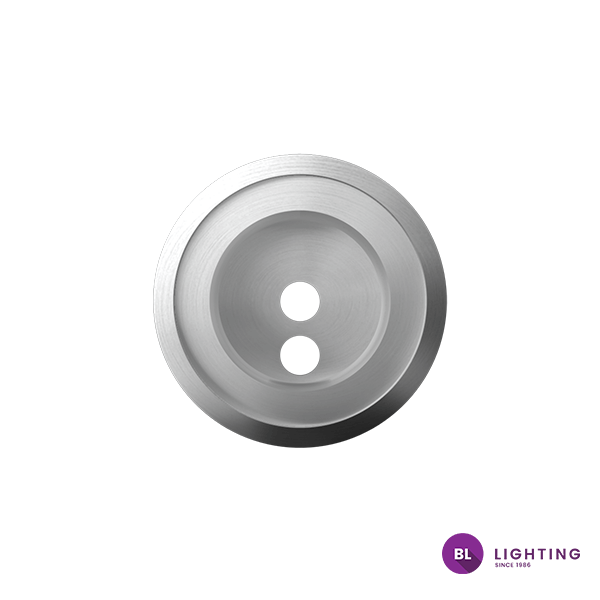

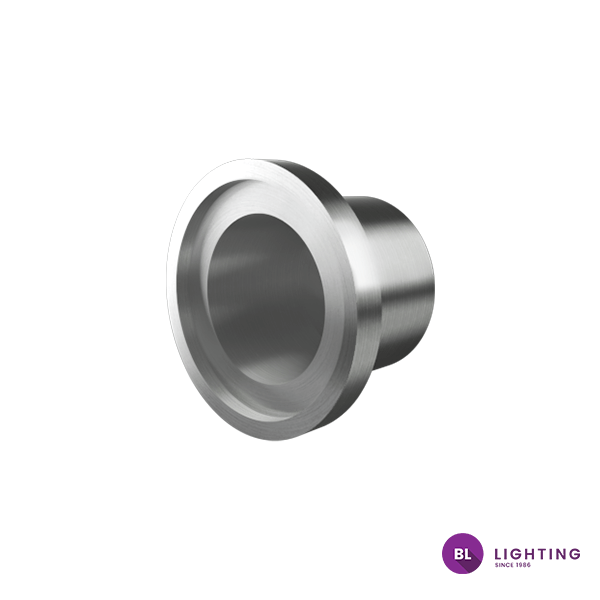

P16 is a walkover-rated fiber optic end fixture, recessed applications in architectural and landscape settings. Featuring a 316 stainless steel housing and a flat clear or frosted 0.39″ tempered glass lens, it delivers a wide 70° beam with adjustable direction for flexible illumination. Designed for walkover use, P16 supports fiber sizes from 0.08″ to 0.31″ and withstands loads up to 1,125 lbs. Weighing 2.02 lbs, it’s ideal for larger-scale installations requiring durability and control. Rated IP65 and operable from 14°F to 113°F, it offers durable performance indoors or out.
-
Features & Benefits
1125LB (510kg) Weight Bearing
IP65 Rated for Wet Locations
316 Stainless Steel, Tempered Glass
Beam Angles 70°

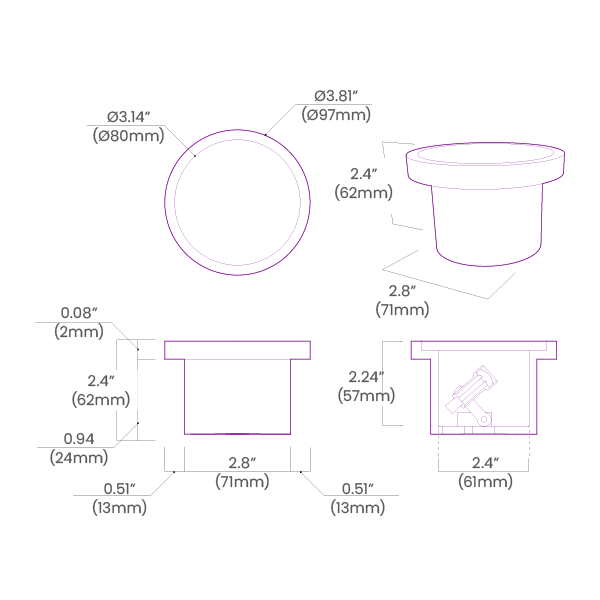

Ø3.14” (Ø80mm) SS316 Trim, Adjustable direction
Operating Temperature 14°F to 113°F (-10°C to 45°C) -
Certifications
-
DOWNLOADS
-
Diameters Available
Min/Max Fiber size 0.08” - 0.31” (2mm - 8mm)
