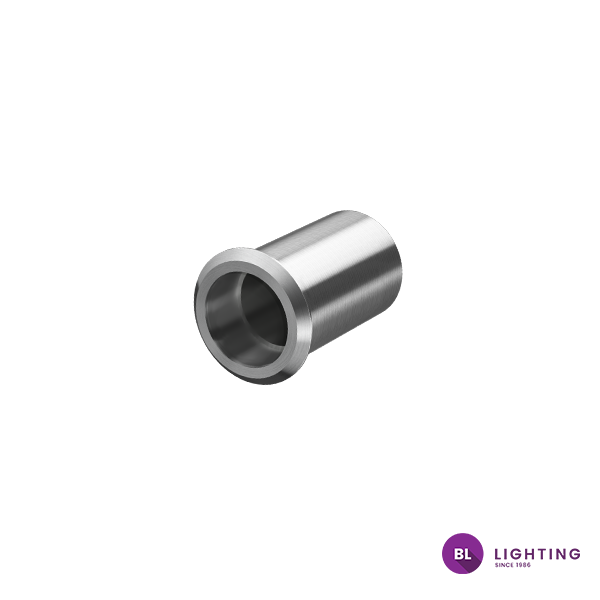

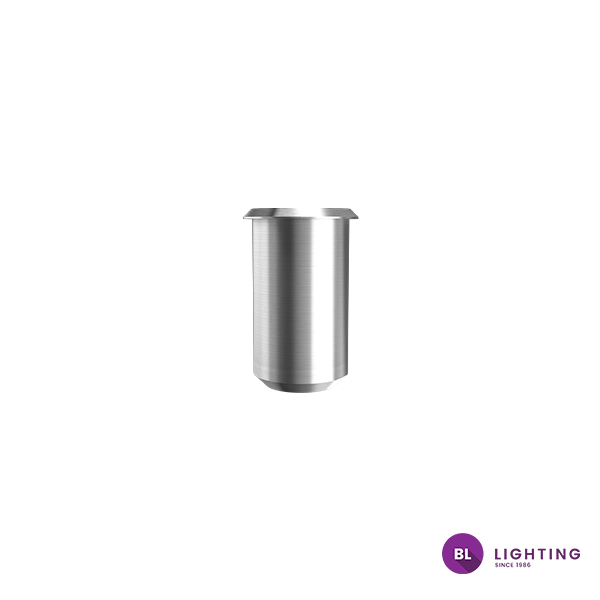

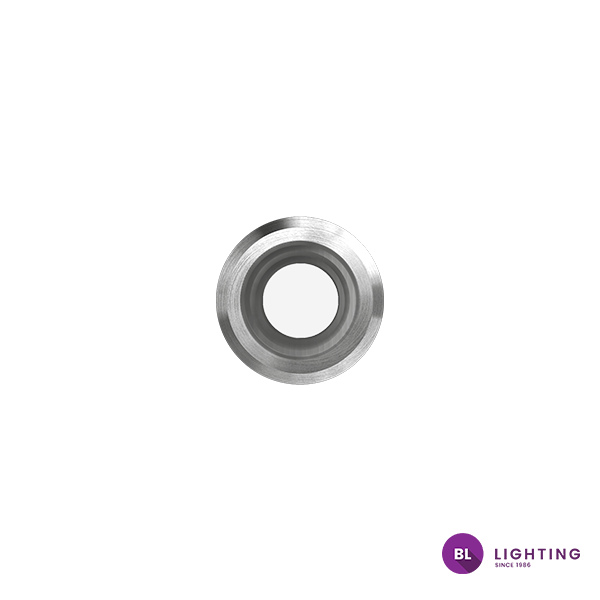

P13 is an ultra-compact, fiber optic end fixture ideal for precision lighting in architectural and landscape settings. Crafted from 316 stainless steel with a flat clear or frosted 0.39″ tempered glass lens, it emits a wide 70° beam for gentle light diffusion. Designed for recessed installation, it accommodates fiber sizes from 0.08″ to 0.31″ and bears loads up to 1,125 lbs. Weighing 0.02 lbs, P13 is perfect for discreet applications requiring a minimal footprint. Rated IP65 and operable from 14°F to 113°F, it offers durable performance indoors or out.
-
Features & Benefits
1125LB (510kg) Weight Bearing
IP65 Rated for Wet Locations
316 Stainless Steel, Tempered Glass
Beam Angles 70°

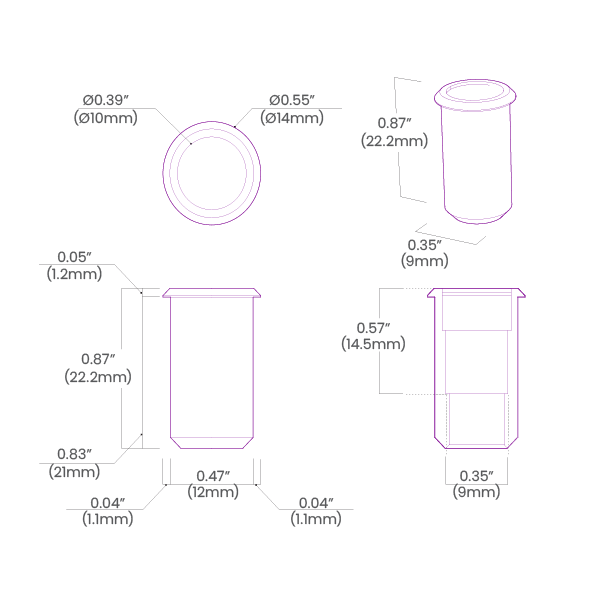

Ø0.39” (Ø10mm) SS316 Trim
Operating Temperature 14°F to 113°F (-10°C to 45°C) -
Certifications
-
DOWNLOADS
-
Diameters Available
Min/Max Fiber size 0.08” - 0.31” (2mm - 8mm)
