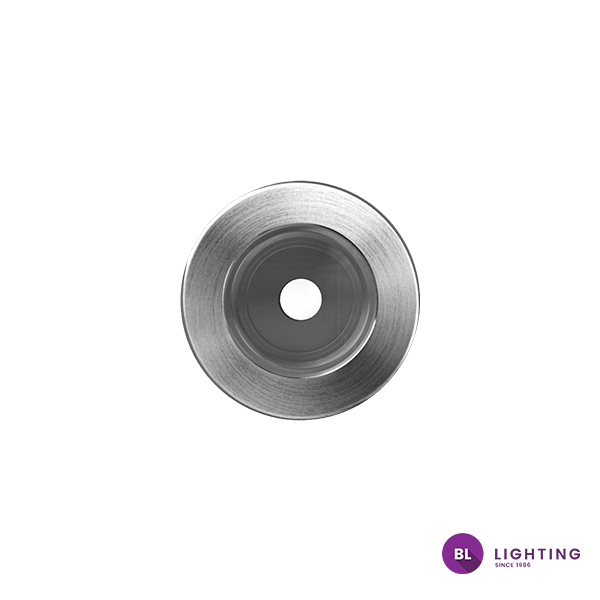

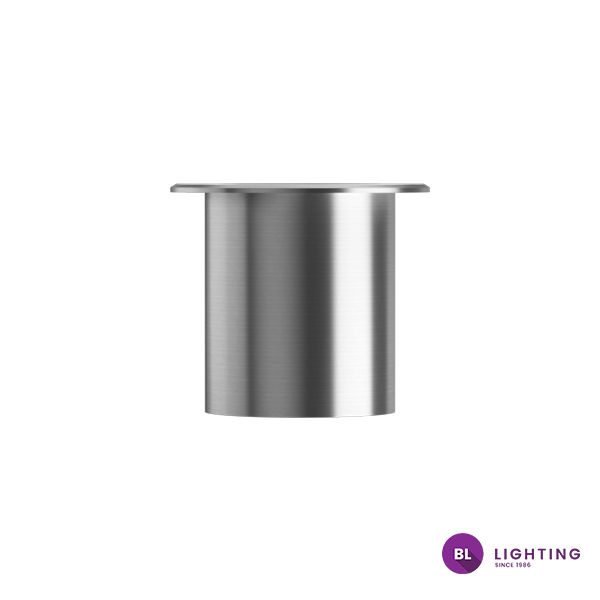

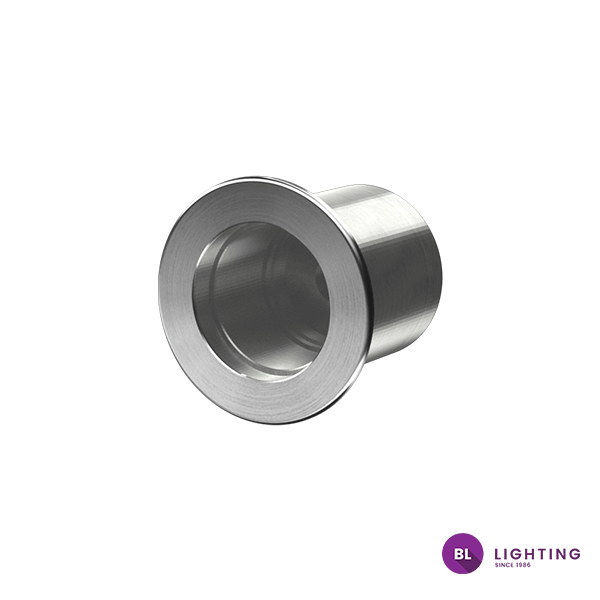

P10 is a compact fiber optic end fixture designed for seamless integration into architectural and landscape settings. Constructed with durable 316 stainless steel and a clear or frosted 1.38″ tempered glass lens, it provides side light transmission for steps, pathways, and accent lighting. The clear lens offers stronger projection, while the frosted lens creates a soft marker effect. Designed for recessed mounting, it supports fiber sizes from 0.08″ to 0.31″ and withstands up to 1,125 lbs of pressure. Rated IP65 and operable from 14°F to 113°F, P10 delivers reliable performance in both indoor and outdoor environments.
-
Features & Benefits
1125LB (510kg) Weight Bearing
IP65 Rated for Wet Locations
316 Stainless Steel, Tempered Glass
Beam Angles 65°

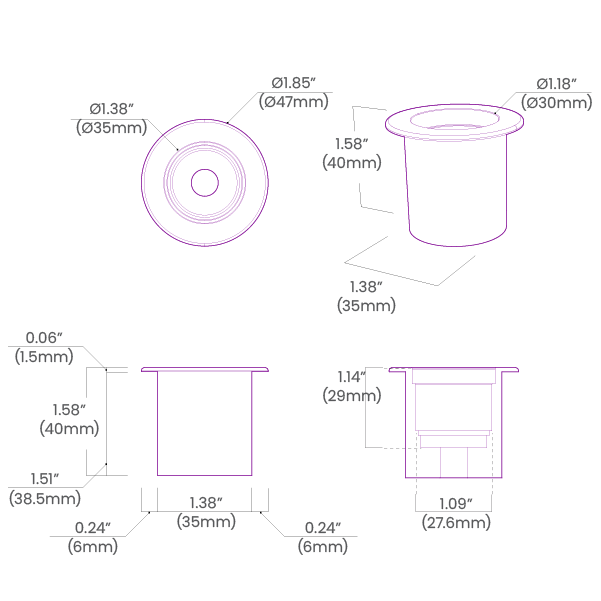

Ø1.38" (Ø35mm) SS316 Trim
Operating Temperature 14°F to 113°F (-10°C to 45°C) -
Certifications
-
DOWNLOADS
-
Diameters Available
Min/Max Fiber size 0.08” - 0.31” (2mm - 8mm)
BL SYSTEMBUILDER - LIGHTING, POWER & CONTROL CONFIGURATOR TOOL
Your Product Code
-
Lighting
-
Series
-
Optics
Select options from the menu to generate a BL Product Code and create your a custom Data Sheet.
Download this document to supplement your design, specification, or to initiate a Bill of Materials with a BL Lighting rep. These are useful details that help us define your project.
1 Layout, Quantity, and other project specific requirements are unknown.
2 Custom Data Sheet is for illustrative purposes and is not an official specification sheet.
Please consult BL Lighting for further details regarding the information and specifics provided in this document. A detailed description of custom system specification to follow official RFQ. Please provide this custom document to the BL Lighting Quotations Department or appointed representative when requesting a Bill of Materials.
