The BL Inground Grazer Series is a family of LED luminaires engineered for high-impact, ground and wall recessed applications that require decorative and robust linear lighting solutions.

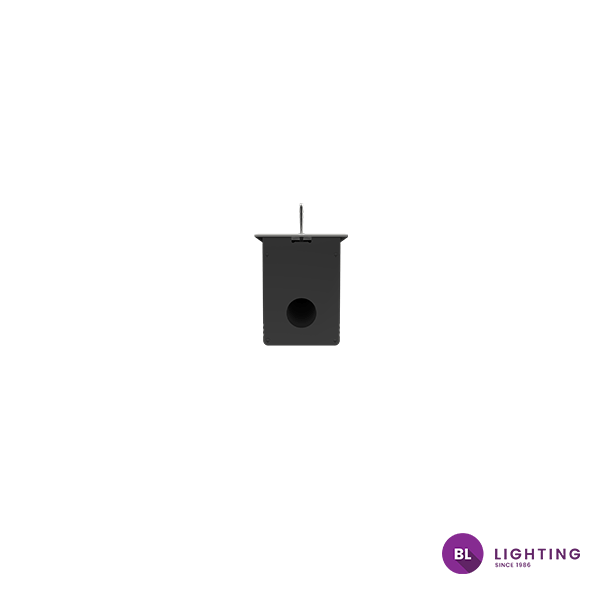

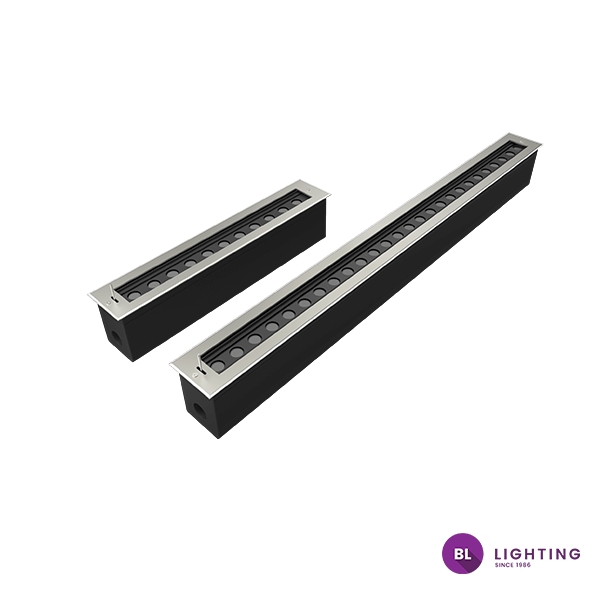

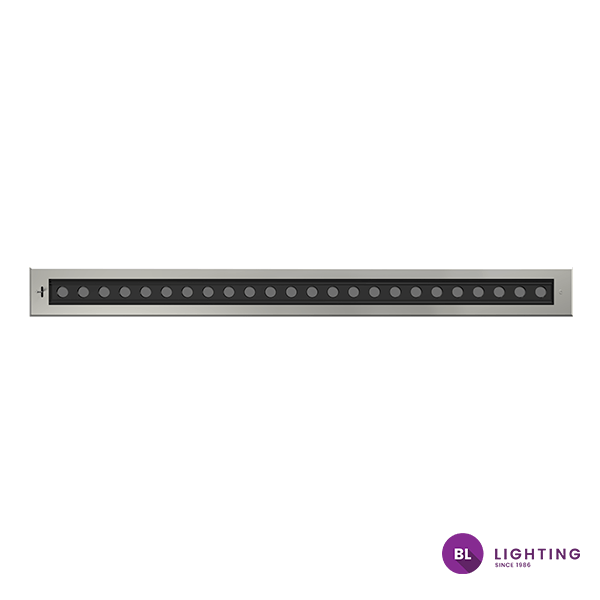

LG9 RGBW is a dynamic inground wall grazer designed for architectural and landscape lighting. Its aluminum housing and 316 stainless steel trim support static loads up to 330lb (150kg), delivering up to 1660lm/unit. Featuring RGBW color mixing with DMX/RDM control and an adjustable 12° tilt for flexible beam control, it enables precise, vibrant illumination. With multiple beam angles, IP67/IK08 protection, and durable construction, the LG9 RGBW delivers reliable performance in outdoor environments.
-
Features & Benefits
Walk-Over Load Rating
330lbs Weight Bearing
4 Beam Angle Options
Up to 1660lm/unit
Two Diffuse Options: Clear Lens and Anti-Glare Lens
Operating Temperature -4°F to 122°F (-20°-50°C)
IP67 Rated LED for Wet or Dry Locations
50,000 Hours Lifespan
Aluminum Housing, 316 Stainless Steel Cover Frame
Suitable for In Ground and In Floor Installations -
Certifications
-
Color/CCT
-
RGBW 2700K
-
RGBW 3000K
-
RGBW 4000K
-
RGBW 6500K
-
-
Downloads
-
Controls
DMX RDM
DMX
BL SYSTEMBUILDER - LIGHTING, POWER & CONTROL CONFIGURATOR TOOL
Your Product Code
-
Product Code
-
Series
-
Length
-
Color
-
Beam Angle
-
Diffuse
-
Controls
-
Finish
-
Input Voltage
-
Ingress Protection
Select options from the menu to generate a BL Product Code and create your a custom Data Sheet.
Download this document to supplement your design, specification, or to initiate a Bill of Materials with a BL Lighting rep. These are useful details that help us define your project.
1 Layout, Quantity, and other project specific requirements are unknown.
2 Custom Data Sheet is for illustrative purposes and is not an official specification sheet.
Please consult BL Lighting for further details regarding the information and specifics provided in this document. A detailed description of custom system specification to follow official RFQ. Please provide this custom document to the BL Lighting Quotations Department or appointed representative when requesting a Bill of Materials.
