The BL Inground Grazer Series is a family of LED luminaires engineered for high-impact, ground and wall recessed applications that require decorative and robust linear lighting solutions.

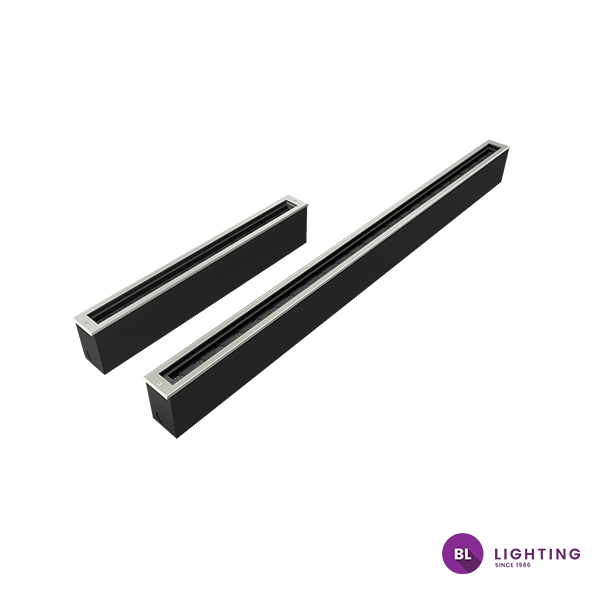

LG5 is a durable inground wall grazer designed for architectural and landscape applications. Its aluminum body and 316 stainless steel trim support static loads up to 330lb (150kg), delivering up to 3080lm/unit. With multiple beam angles, static white options from 2700K to 6500K, and an optional anti-glare lens, it provides uniform, glare-free illumination. Rated IP67/IK08 and compatible with 0–10V, TRIAC, and ELV controls, the LG5 ensures reliable performance in any outdoor environment.
-
Features & Benefits
Walk-Over Load Rating
330lbs Weight Bearing
3 Beam Angle Options
Up to 3080lm/unit
Two Diffuse Options: Clear Lens and Anti-Glare Lens
Operating Temperature -4°F to 122°F (-20°-50°C)
IP67 Rated LED for Wet or Dry Locations
50,000 Hours Lifespan
Aluminum Housing, 316 Stainless Steel Cover Frame
Suitable for In Ground and In Floor Installations -
Certifications
-
Color/CCT
-
2700K
-
3000K
-
3500K
-
4000K
-
5000K
-
6500K
-
-
Downloads
-
Controls
0-10V TRIAC ELV
0-10V
BL SYSTEMBUILDER - LIGHTING, POWER & CONTROL CONFIGURATOR TOOL
Your Product Code
-
Product Code
-
Series
-
Length
-
Color
-
Diffuse
-
Beam Angle
-
Controls
-
Finish
-
Input Voltage
-
Ingress Protection
Select options from the menu to generate a BL Product Code and create your a custom Data Sheet.
Download this document to supplement your design, specification, or to initiate a Bill of Materials with a BL Lighting rep. These are useful details that help us define your project.
1 Layout, Quantity, and other project specific requirements are unknown.
2 Custom Data Sheet is for illustrative purposes and is not an official specification sheet.
Please consult BL Lighting for further details regarding the information and specifics provided in this document. A detailed description of custom system specification to follow official RFQ. Please provide this custom document to the BL Lighting Quotations Department or appointed representative when requesting a Bill of Materials.
