- Category:
- Luminaires
- Series:
- BL Inground

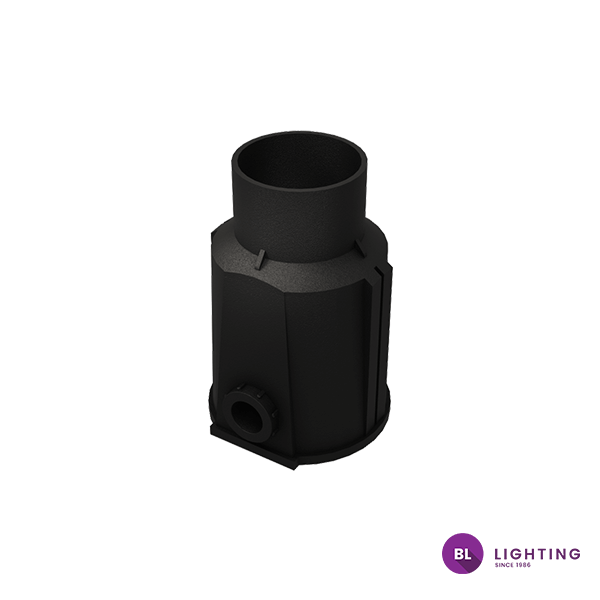

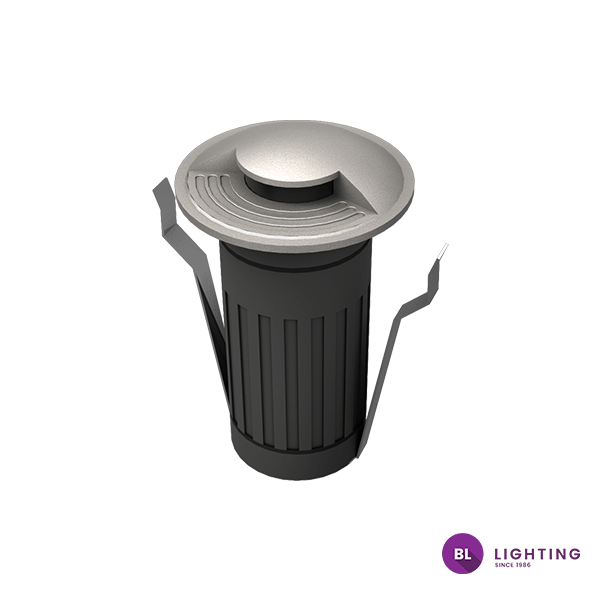

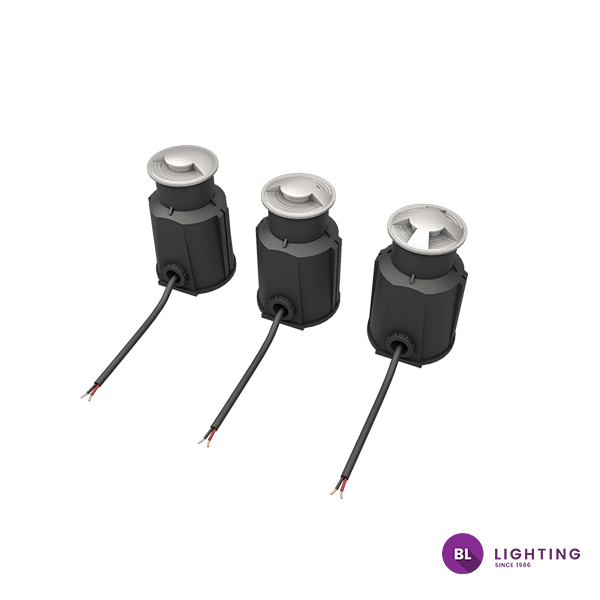

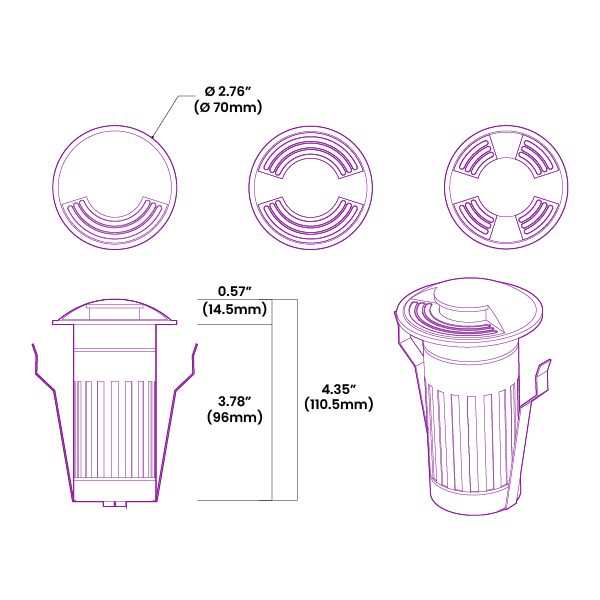

BL Inground GR70 Drive over compact LED grazer directs light to the side and casts a glare free glow across surfaces, bathing walkways and paths in smooth illumination with your choice of uni, bi, or quad directional beams. The incredibly low profile and efficient 2.5W LED luminaire is IP67 rated and durably constructed with a die-cast aluminum body, Ø2-3/4″(70mm) chrome plated 316 stainless steel trim, optic lens, and IK10 rating for walk and drive over applications. Easy to install with included mounting boot, this attractive edge-lit semi-recessed in-grade luminaire enhances walkways and provides safe wayfinding and delineation for paths, plazas, and driveways.
-
Features & Benefits
Operating Temperature -4°F to 104°F (-20°C to 40°C)
50,000 Hours Average Lifespan
Class 2, ETL Listed Low-Voltage Lighting System
IP67 Rated for Wet Locations
Weight Bearing 4409lbs (2000 kg)
Impact Protection Rating : IK10
-
Certifications
-
Color Options
-
2000K
-
3000K
-
4000K
-
6000K
-
-
Download
-
Controls
0-10V MLV ELV Phase-Cut Triac
DMX
Bluetooth
0-10V
DMX
Bluetooth
BL SYSTEMBUILDER - LIGHTING, POWER & CONTROL CONFIGURATOR TOOL
Your Product Code
-
Product Code
-
Series
-
CCT
-
Style of the cap
-
Input Voltage
-
Ingress Protection
Select options from the menu to generate a BL Product Code and create your a custom Data Sheet.
Download this document to supplement your design, specification, or to initiate a Bill of Materials with a BL Lighting rep. These are useful details that help us define your project.
1 Layout, Quantity, and other project specific requirements are unknown.
2 Custom Data Sheet is for illustrative purposes and is not an official specification sheet.
Please consult BL Lighting for further details regarding the information and specifics provided in this document. A detailed description of custom system specification to follow official RFQ. Please provide this custom document to the BL Lighting Quotations Department or appointed representative when requesting a Bill of Materials.
