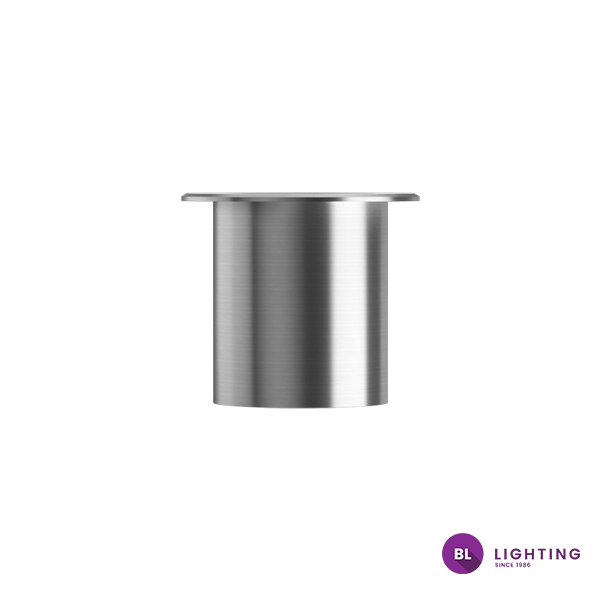

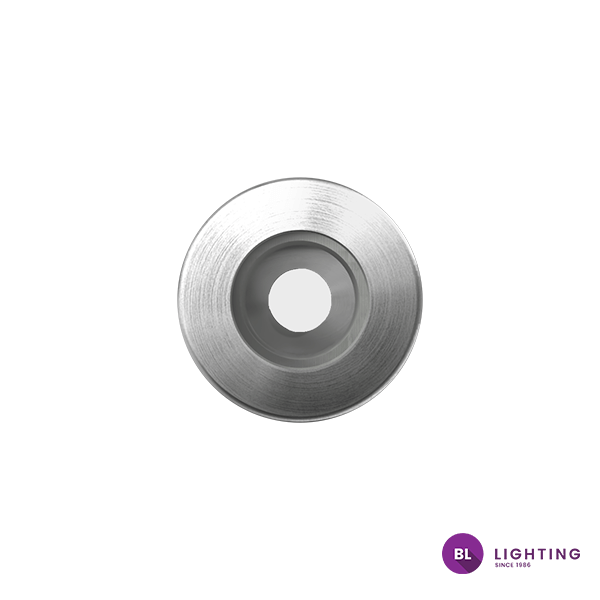

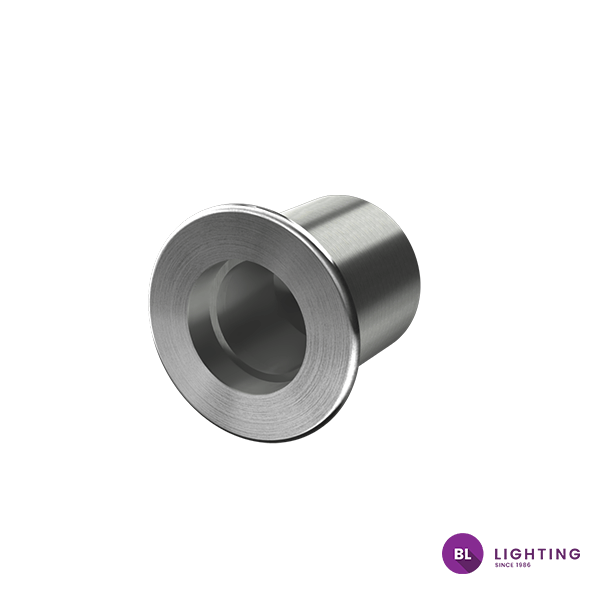

P12 is a durable, walkover-rated fiber optic end fixture designed for clean, low-profile lighting in architectural and landscape environments. Built from 316 stainless steel with a flat clear or frosted 0.79″ tempered glass lens, P12 delivers a focused 45° beam ideal for accenting paths, steps, or façade features. Recessed for seamless installation, it handles fiber sizes from 0.08″ to 0.31″ and supports up to 1,125 lbs of pressure. Weighing 0.2 lbs and rated IP65, P12 performs reliably in outdoor and indoor settings across a wide temperature range of 14°F to 113°F.
-
Features & Benefits
1125LB (510kg) Weight Bearing
IP65 Rated for Wet Locations
316 Stainless Steel, Tempered Glass
Beam Angles 45°

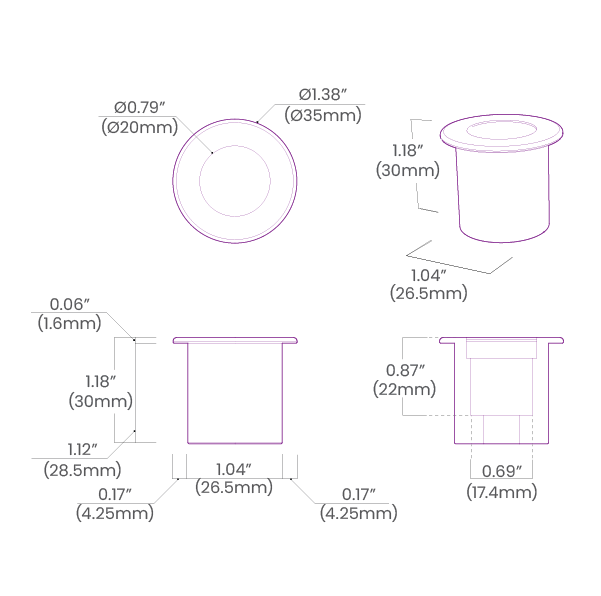

Ø0.79” (Ø20mm) SS316 Trim
Operating Temperature 14°F to 113°F (-10°C to 45°C) -
Certifications
-
DOWNLOADS
-
Diameters Available
Min/Max Fiber size 0.08” - 0.31” (2mm - 8mm)
