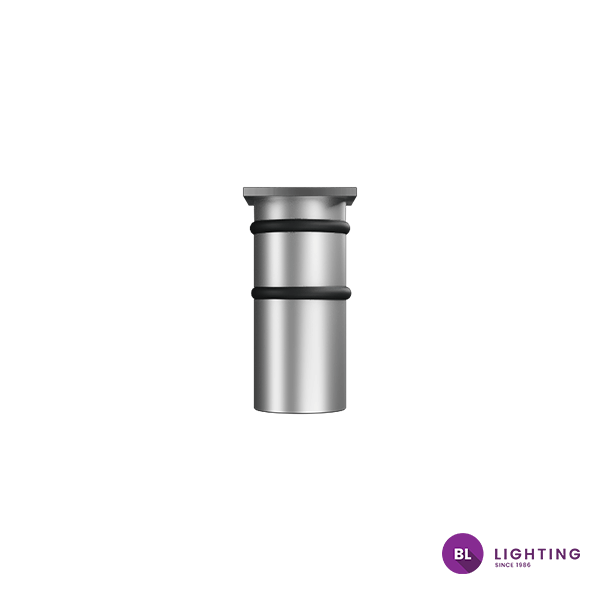

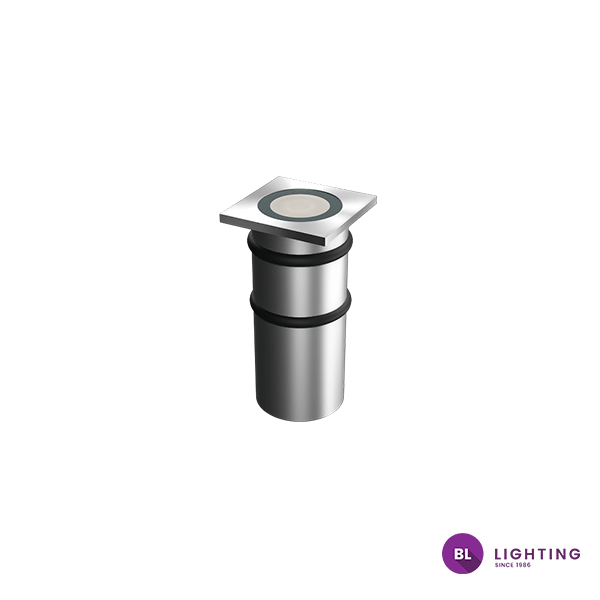

GS20 is a sleek, circular outdoor recessed luminaire delivering up to 95 lumens per unit with just 1W of power. Available in 3000K, 4000K, 6000K, and RGB options, with beam angles from 20° to 60°, it offers precise vertical highlighting for columns, porticoes, garden walls, and tree silhouettes. Crafted with a robust 316 stainless steel housing and 1/8” tempered glass lens, GS20 withstands static loads up to 1100 lbs, making it ideal for pavers, decks, patios, and walkways. Rated IP68 for water resistance and IK07 for impact protection, it operates reliably from -4°F to 113°F, with DMX512 control for dynamic lighting effects.
-
Features & Benefits
1100LB (500kg) Weight Bearing
IP68 Rated for Wet Locations
Stainless Steel 316, and Tempered Glass Construction
Class 2, ETL Listed Low-Voltage Lighting System
50,000 Hours Average Lifespan
Beam Angles: 20°, 30°, 45°, 60°
0.79" (20mm) SS316 Square Trim -
Certifications
-
Color Options
-
3000K
-
4000K
-
6000K
-
RGB
-
-
Downloads
-
Controls
DIM
DMX
DIM
DMX
BL SYSTEMBUILDER - LIGHTING, POWER & CONTROL CONFIGURATOR TOOL
Your Product Code
-
Lighting
-
Series
-
CCT/Color
-
Beam Angle
-
Optics
-
Control
-
Input Voltage
-
Ingress Protection
Select options from the menu to generate a BL Product Code and create your a custom Data Sheet.
Download this document to supplement your design, specification, or to initiate a Bill of Materials with a BL Lighting rep. These are useful details that help us define your project.
1 Layout, Quantity, and other project specific requirements are unknown.
2 Custom Data Sheet is for illustrative purposes and is not an official specification sheet.
Please consult BL Lighting for further details regarding the information and specifics provided in this document. A detailed description of custom system specification to follow official RFQ. Please provide this custom document to the BL Lighting Quotations Department or appointed representative when requesting a Bill of Materials.
