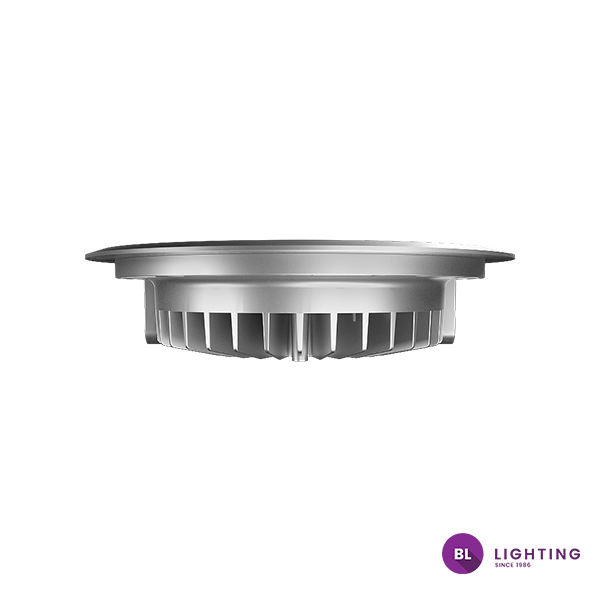

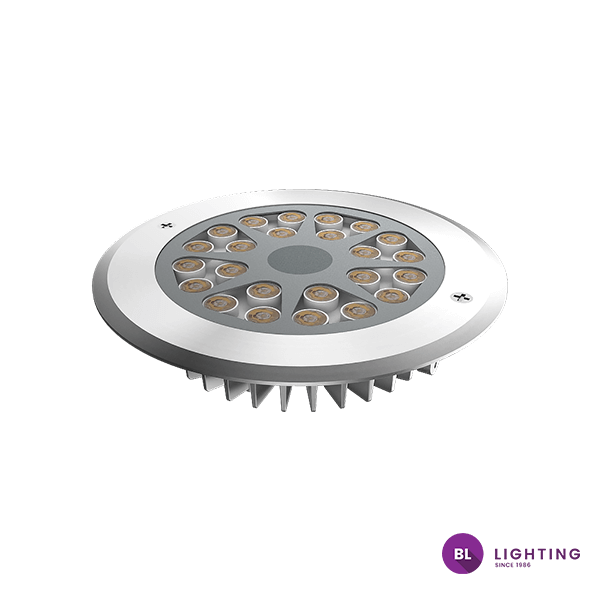

GR248 is a powerful circular outdoor recessed luminaire delivering up to 2400 lumens per unit at 24W. Available in 3000K, 4000K, 6000K, RGB, and RGBW options with beam angles of 20°, 40°, and 60°, it is perfect for dramatic vertical highlighting of architectural and landscape features. Built with a robust 316 stainless steel frame, aluminum body, and 0.31” tempered glass lens, GR248 withstands static loads up to 2205 lb, making it ideal for pavers, decks, patios, and walkways. Rated IP67 for water resistance and IK10 for impact protection, it operates from -4°F to 113°F with control options including 0/1-10V, and DMX for dynamic lighting versatility.
-
Features & Benefits
2205LB (1000kg) Weight Bearing
IP67 Rated for Wet Locations
Durable Aluminum, Stainless Steel 316 and Tempered Glass Construction
Class 2, ETL Listed Low-Voltage Lighting System
50,000 Hours Average Lifespan
Beam Angles: 20°, 40°, 60°
Ø9.76" (Ø248mm) SS316 Trim -
Certifications
-
Color Options
-
3000K
-
4000K
-
6000K
-
RGB
-
RGBW
-
-
Downloads
-
Controls
DIM
DMX
DIM
DMX
BL SYSTEMBUILDER - LIGHTING, POWER & CONTROL CONFIGURATOR TOOL
Your Product Code
-
Lighting
-
Series
-
CCT/Color
-
Beam Angle
-
Optics
-
Control
-
Input Voltage
-
Ingress Protection
Select options from the menu to generate a BL Product Code and create your a custom Data Sheet.
Download this document to supplement your design, specification, or to initiate a Bill of Materials with a BL Lighting rep. These are useful details that help us define your project.
1 Layout, Quantity, and other project specific requirements are unknown.
2 Custom Data Sheet is for illustrative purposes and is not an official specification sheet.
Please consult BL Lighting for further details regarding the information and specifics provided in this document. A detailed description of custom system specification to follow official RFQ. Please provide this custom document to the BL Lighting Quotations Department or appointed representative when requesting a Bill of Materials.
