The BL inGRADE Series are a family of LED luminaires engineered for high-impact, ground-recessed applications that require decorative yet functional lighting solutions.

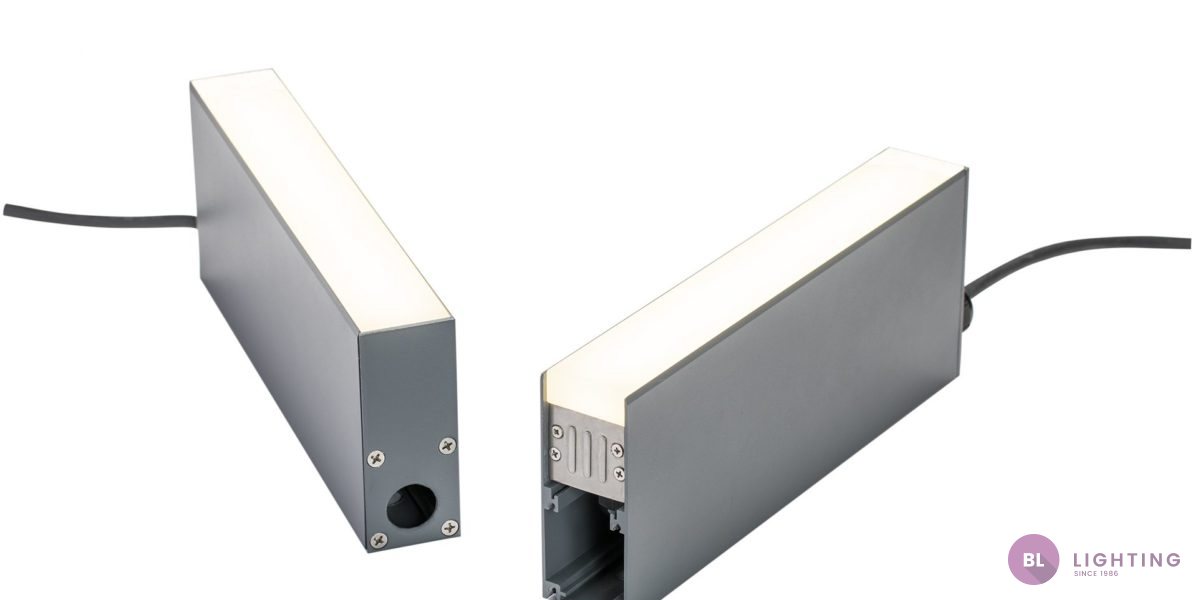

BL inGROUND LNR9939 recessed linear lights are ideal for wayfinding, delineation, accent and safety lighting in plazas, walkways and public spaces. Luminaires are solidly constructed with 1100lbf weight bearing capacity, IP67 rating, corrosion resistant aluminum housing, internal cable raceway and weatherproof quick connectors for easy installation. The acrylic lens optic delivers uniform, glare-free illumination with a 120° beam angle for ground, floor and wall applications. 3000K, 4000K, 5500K and RGBW options are available to add eye-catching accents to modern hardscape applications.
-
Features & Benefits
1100LB Weight Bearing
Flush Recessed, Trimless Installation
Quick Connect up to 12FT

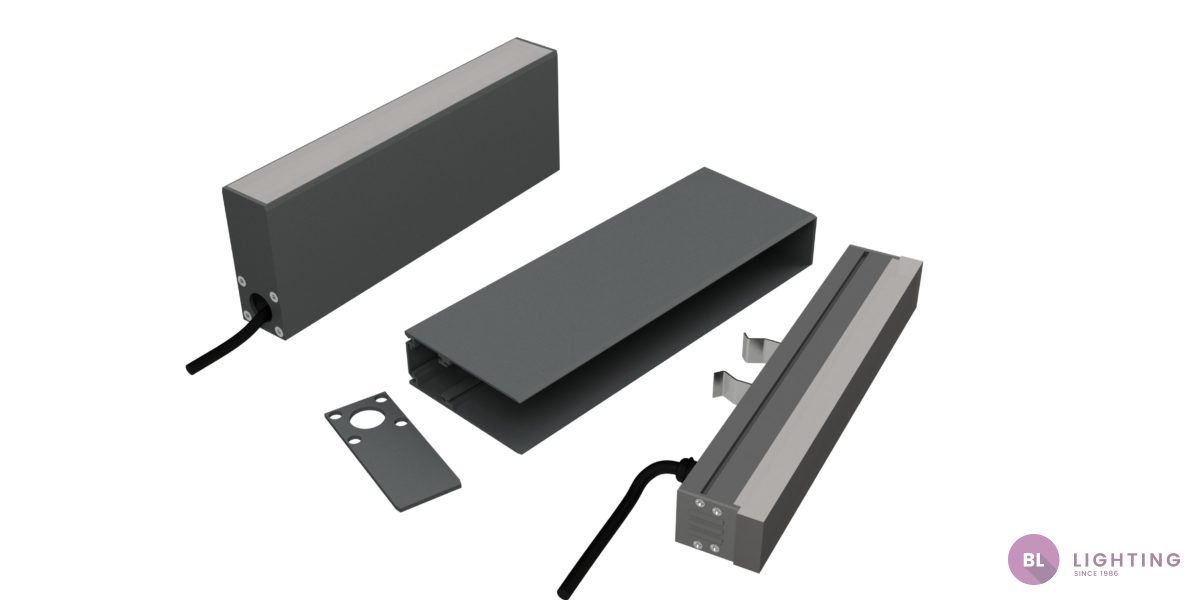

Internal Cable Raceway
Vandal Proof, Proprietary Anti-Theft Release Key

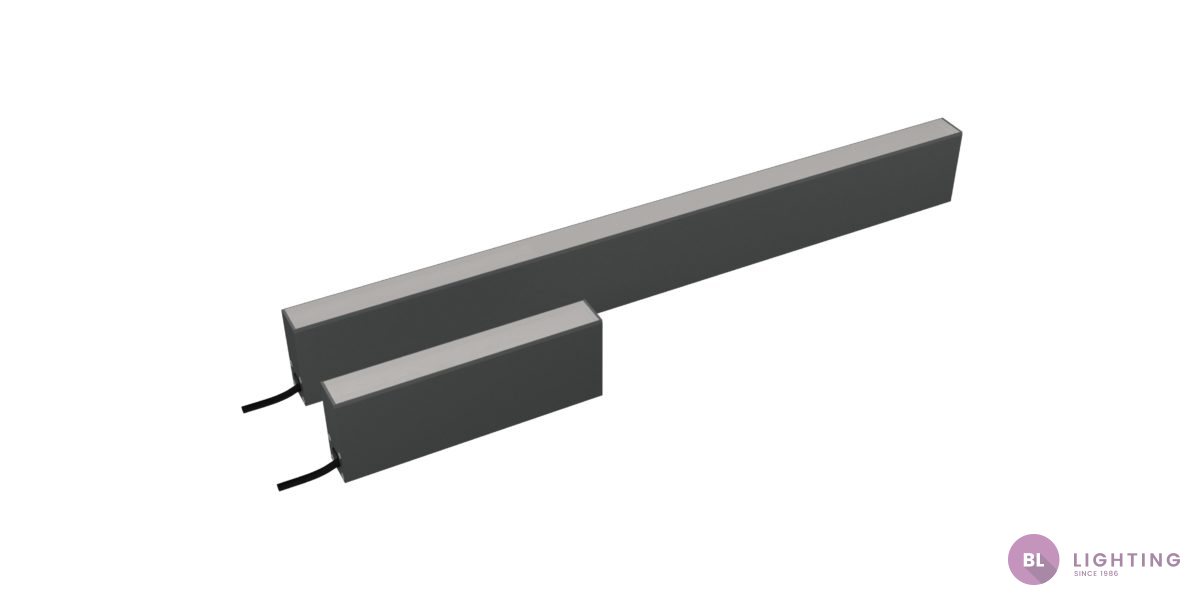

Available in 1' and 3' Sections
Aluminum Housing, Anti-Corrosion Coated
Acrylic Lens Optimizes Uniform and Glare Free Light Delivery
Wide 120° Beam
Operating Temperature -4°F to 104°F (-20°C to 40°C)
Dry and Wet Locations, IP67 Rated
50,000 Hours Average Lifespan
Suitable for In Ground, Floor and Wall Installation

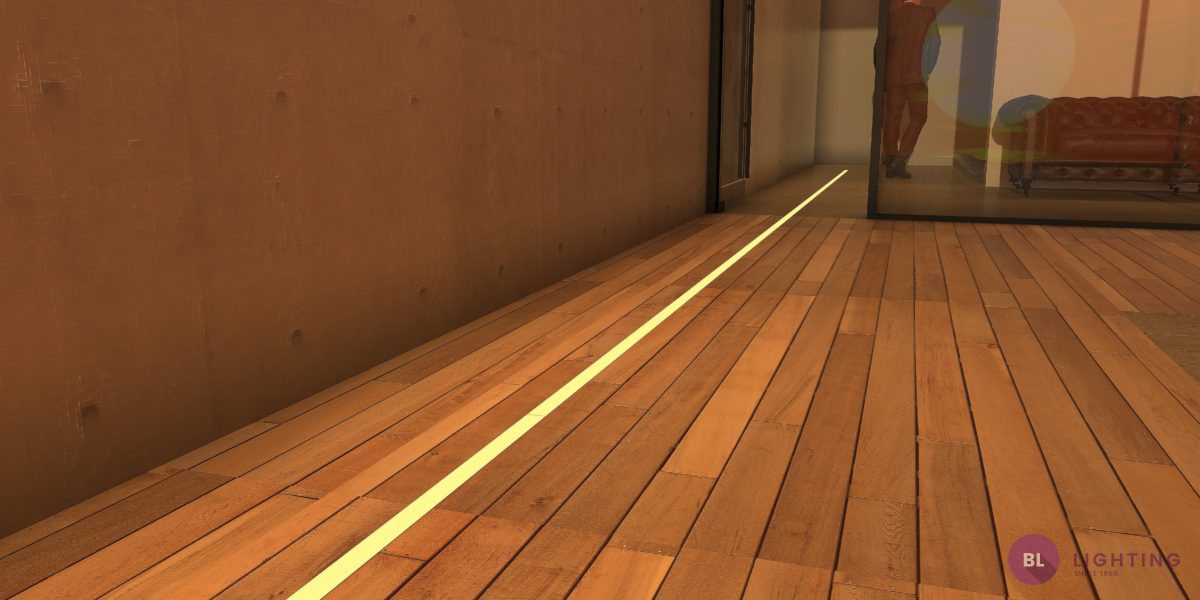

Walkways, Paths and Driveway Delineation
Plazas, Parks, Commercial & Public Spaces -
Certifications
-
Color Options
-
3000K
-
4000K
-
6000K
-
RGBW
-
-
Downloads
-
Controls
0-10V MLV/ELV
TRIAC Phase Cut
DMX
Bluetooth
0-10V
TRIAC
DMX
Bluetooth
BL SYSTEMBUILDER - LIGHTING, POWER & CONTROL CONFIGURATOR TOOL
Your Product Code
-
Lighting
-
Length
-
CCT/Color
-
Control
-
INT/EXT Installation
Select options from the menu to generate a BL Product Code and create your a custom Data Sheet.
Download this document to supplement your design, specification, or to initiate a Bill of Materials with a BL Lighting rep. These are useful details that help us define your project.
1 Layout, Quantity, and other project specific requirements are unknown.
2 Custom Data Sheet is for illustrative purposes and is not an official specification sheet.
Please consult BL Lighting for further details regarding the information and specifics provided in this document. A detailed description of custom system specification to follow official RFQ. Please provide this custom document to the BL Lighting Quotations Department or appointed representative when requesting a Bill of Materials.
